10-23 GX460 / 10-14 FJ Bilstein 6112 Front Coilovers - Heavy Duty

Product image 1
1 / 2

10-23 GX460 / 10-14 FJ Bilstein 6112 Front Coilovers - Heavy Duty

PN: 47-311039

Collapsed Length (in): 16.86
Extended Length (in): 21.65
Collapsed Length (mm): 428.3
Extended Length (mm): 550.0
Stroke/travel Length (in): 4.79
Internal Design: Monotube
Finish: Dampers: Zinc Plated/Springs: Black
Reservoir: No
Body Design: Snap Ring Grooved Body (Coilover)
Body Diameter (od): 2.65 in.
Piston Diameter: 60mm
Boot Included: No
Spring Seat Included: Yes
Front Main Spring Rate (lbs/in): 700
Shaft Diameter: 18mm

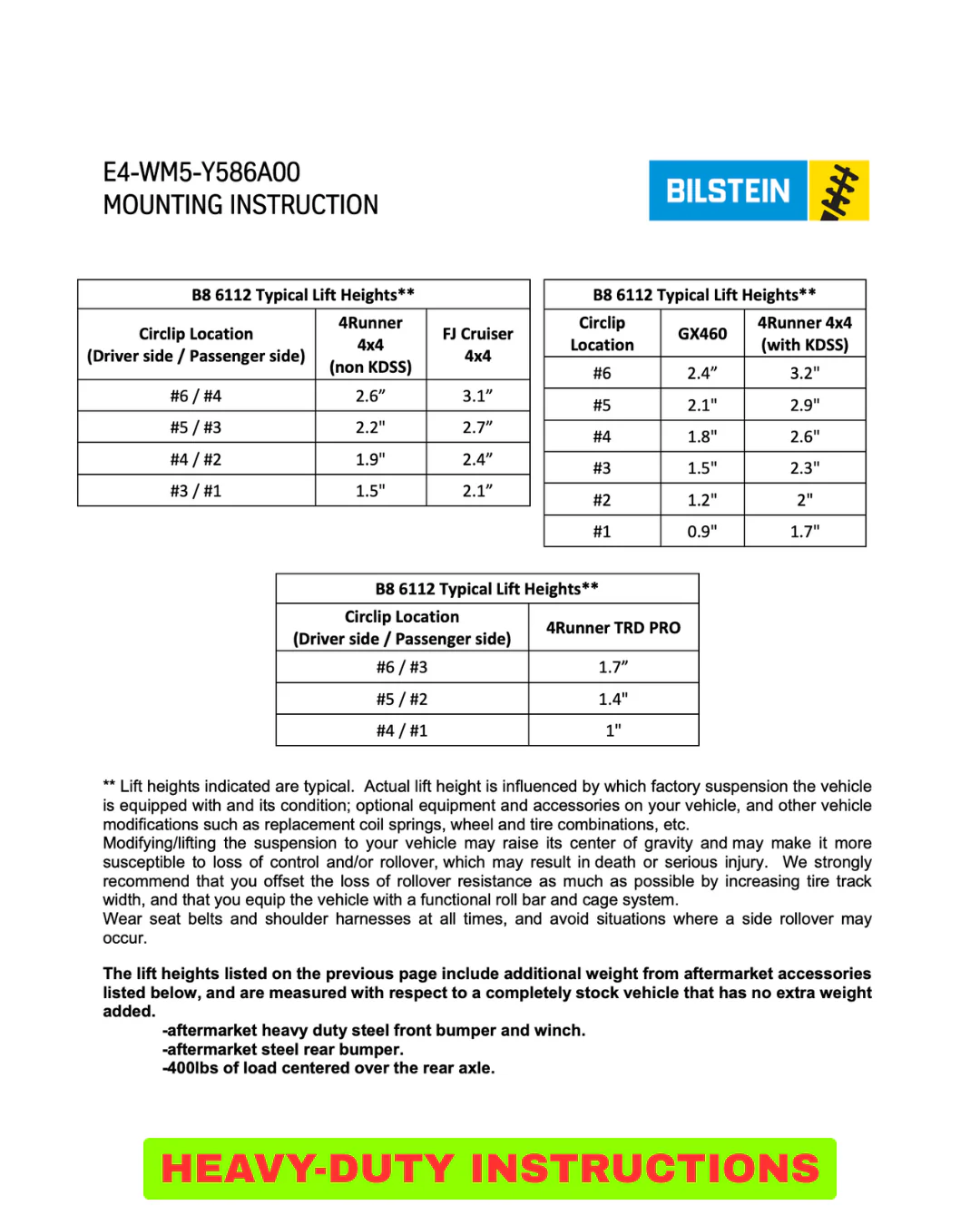

Circlip Location / Installation Guide

Notes: Provides 1.5-2.6" Front Lift. For 150-200 lbs additional front weight.

$323.05

Original: $923.00

-65%
10-23 GX460 / 10-14 FJ Bilstein 6112 Front Coilovers - Heavy Duty—

$923.00

$323.05

Product Information

Shipping & Returns

Description

PN: 47-311039

Collapsed Length (in): 16.86
Extended Length (in): 21.65
Collapsed Length (mm): 428.3
Extended Length (mm): 550.0
Stroke/travel Length (in): 4.79
Internal Design: Monotube
Finish: Dampers: Zinc Plated/Springs: Black
Reservoir: No
Body Design: Snap Ring Grooved Body (Coilover)
Body Diameter (od): 2.65 in.
Piston Diameter: 60mm
Boot Included: No
Spring Seat Included: Yes
Front Main Spring Rate (lbs/in): 700
Shaft Diameter: 18mm

Circlip Location / Installation Guide

Notes: Provides 1.5-2.6" Front Lift. For 150-200 lbs additional front weight.
